Bandwidth up to 800MHz
Low Input Capacitance

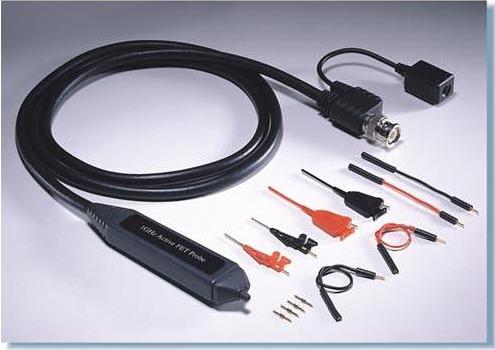

Complete accessories allows easy probing of SMDs
Applications:
Wireless and Data
Communication
Disk Drive Design
Communication Pulse Shape
Complicance
Location of Ground Bounce
|
| |
|
| |
|
| |
| Bandwidth | 800MHz |
| Attenuation | 1/10 |
| Accuracy | +/-2% |
| Input Impedance | 100kohm//2pF each side to ground |
| Input Voltage | |
| Differential Input Voltage | +/-15V |
| Common Mode Voltage | +/-30V |
| Absolute Max. Voltage | +/-40V |
| Output Voltage | |
| Swing (into 5kohm load) | +/-1.5V |
| Offset (typical) | <+/-5mV |
| Source Impedance (typical) | 50ohm |
| CMRR (typical) | -60dB@100Hz, 15dB@10MHz |
| Output BNC Cable | 1.2M |
| Power Requirements | 12VDC/100mA mains adaptor |
| Length of BNC Lead | 125cm |
| Weight | 130gms |
| Dimensions(LxWxH) | 111mm x 22mm x 14mm |
|
